Utilizing Quixel Bridge Plugin And Nanite in Unreal Engine

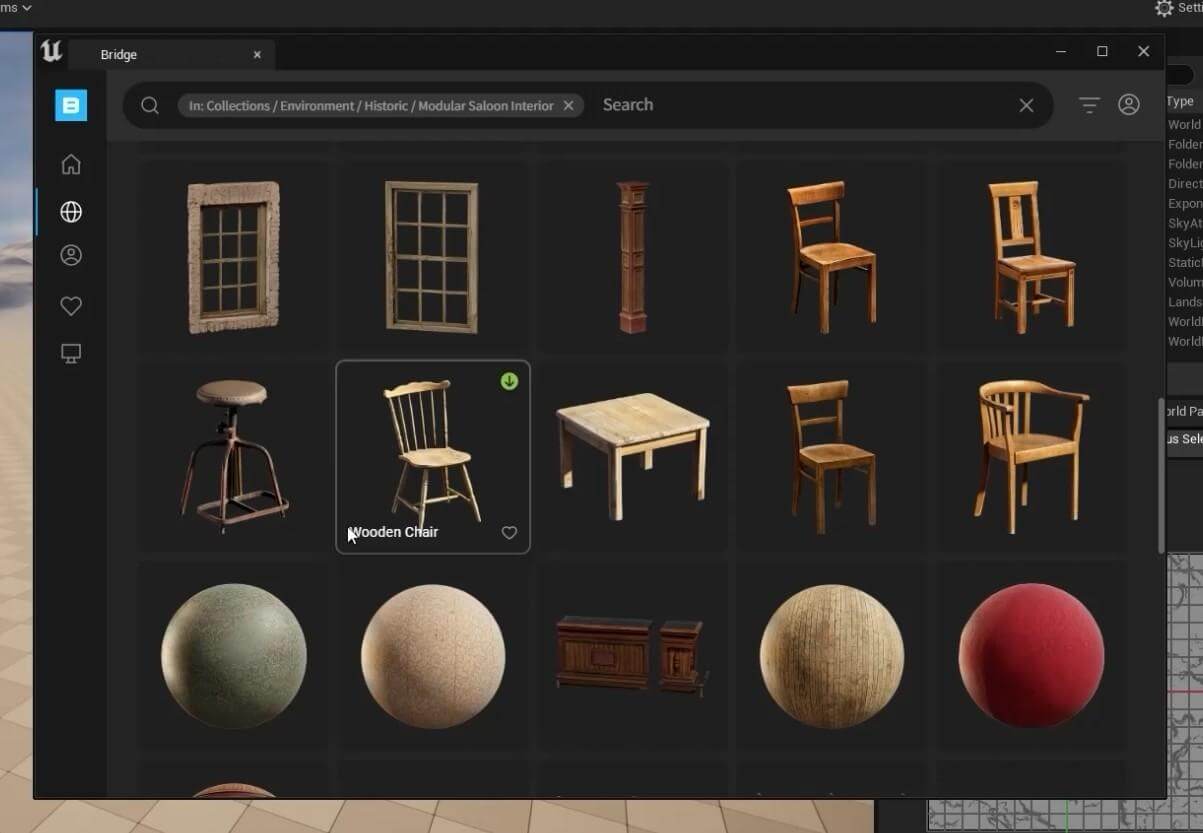

Accessing Quixel Bridge:

• Introduction to Quixel Bridge: Unreal Engine comes with a handy plugin: Quixel Bridge. This feature gives you the ability to choose from a wide array of high-res assets that have been photo-scanned – perfect no matter what kind of project you’re working on.
• Logging In: Whenever you start work on a project using Unreal Engine, simply log into your Epic Games account first. Once this initial step has been completed, Quixel Bridge will ensure that you remain connected throughout said project; this makes it easy to access any assets that you may need.
• Customize your workspace: Fortunately, the window for Quixel Bridge can be moved around to suit you. Furthermore, each asset preview includes information about its height, enabling better decision-making before downloading anything.

Asset Resolutions and Types:

• Resolution Options: We have various resolution options available via Quixel Bridge, among them is the cutting-edge Nanite resolution. This system introduces virtualized geometry from Unreal Engine 5 that modifies how detailed an object appears according to distance from the camera.
• Detail Management: Nanite works by adjusting the level of detail so fewer triangles are making up an object when you zoom out (greatly improving game performance) — but as soon as your view moves closer for inspection it switches things around so there is no loss in visual fidelity!

Asset Management:

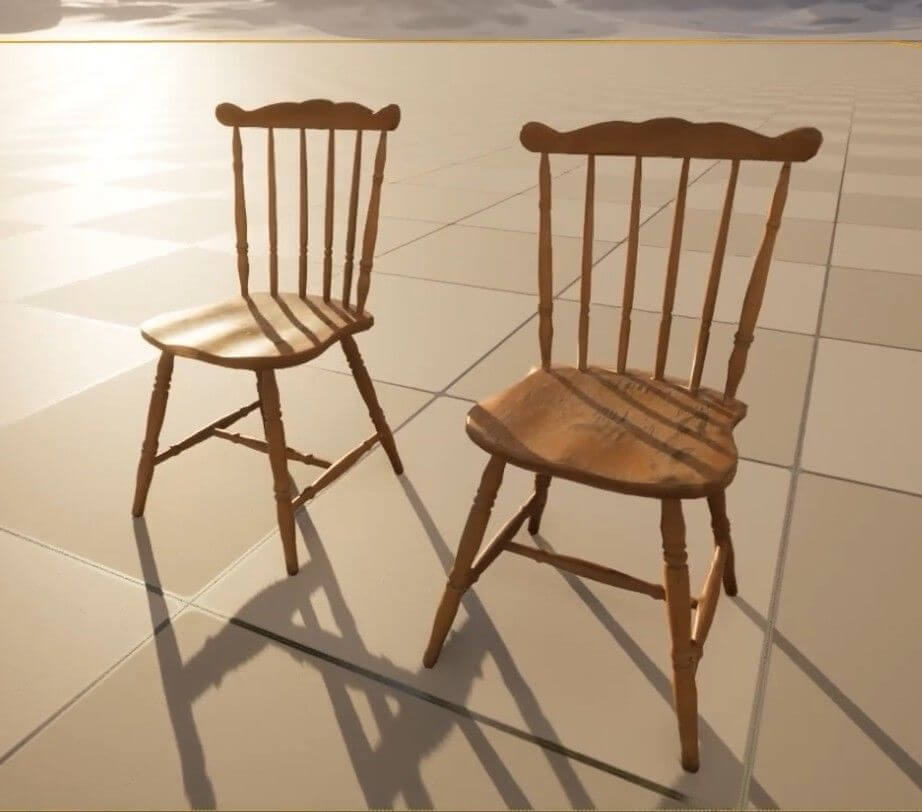

• Variety of Assets: Within the plugin, there exists an extensive range of assets – from indoor furnishings to plants – that come in all manner of shapes and sizes. Whenever you download assets, they will each be placed in their folder inside your Megascans directory which can be found within the ‘Content’ folder.
• Nanite Quality: Note that only certain assets, such as plants, do not feature Nanite quality. Plants come in multiple variations, allowing for diverse usage in scenes.

Working with Materials and Decals:

• Material Choices: From within Quixel Bridge, you can pick out materials from a wide range of options. Each one comes with its textures and Material Instances. Because most of these materials are tileable, you will have lots of flexibility when it comes to using them.

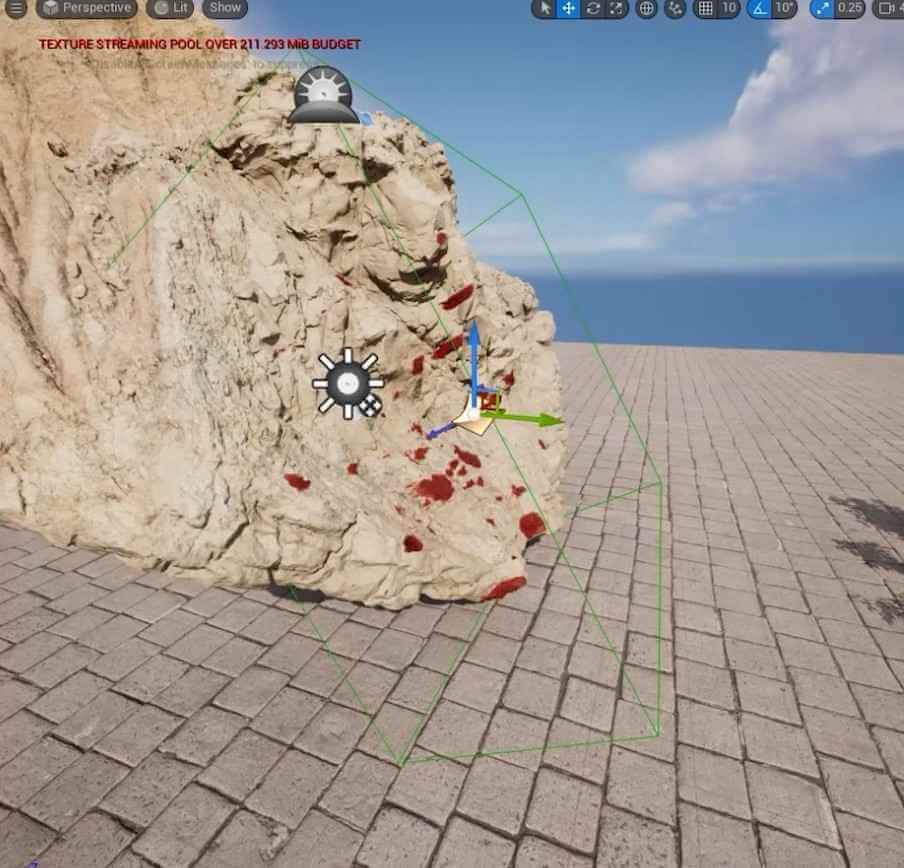

• Using Decals: These Material Instances can also be used to add surface details – for example stains, cracks, etc – to your scenes via something called Decals. One of the cool things about Decals is that after they have been applied, it is possible to change things like their position, rotation and what appears in front of them. By placing Decals over surfaces, you can make identical marks on many different objects at the same time.
• Decal Management: If you don’t want Decals (or certain types of Decals) affecting specific assets there are options within Details to disable them. For realism, pay careful attention to positioning as well as rotation plus make sure Decals are not placed upside down.

Conclusion: Master Detailing in UE 5

In Unreal Engine 5, the Quixel Bridge plugin and Nanite provide a strong way to take projects to the next level using top-notch photorealistic assets. Because it works so smoothly with Unreal Engine and fully uses advanced Nanite technology, Bridge can add incredible detail and realism to any scene –– whether that means foliage, props, or materials.

The Bridge plugin and Nanite also give you everything you need to manage these assets well (ensuring high visual fidelity and good performance) and even customize them.
