Digital Environment Design: Unreal Engine Blueprint Techniques

In this Unreal Engine project, we concentrate on digital environment design—efficiently creating many elements using blueprints and advanced methods. You will discover how to add fire effects to scenes by buying assets from Epic Marketplace; making adjustable tent blueprints with features that can be used in different settings; and developing modular campfire blueprints that can be customized easily.

We will also look at how to use spline tools for streamlining workflow when making chain link fences; carefully place rocks, trees, foliage, and other natural details so the scenes look more realistic. explain the upcoming section: “We’ll also dive into set dressing techniques in part five– these are what professional designers call putting on the finishing touches! This will help bring your scene to life by ensuring they’re vibrant and immersive.” So buckle up and let’s dive into the digital environment design for UE.

Digital Environment Design: Workflow

Torches

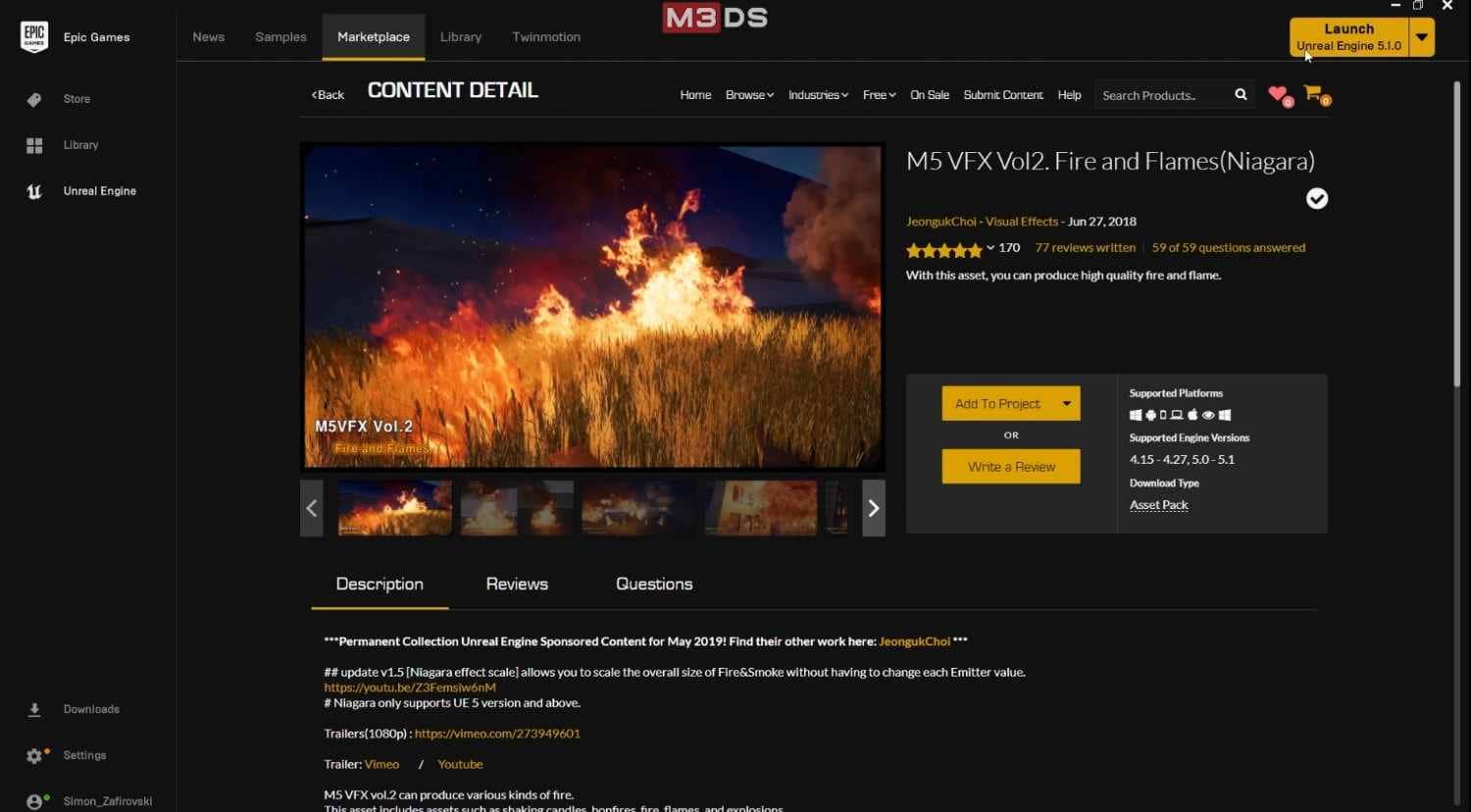

To create realistic torches in Unreal Engine, start by leveraging free VFX packs available on the Epic Games Marketplace. Specifically, you’ll need fire effects to achieve the desired look for your environment.

  1. Import Fire VFX: To begin, import the fire VFX pack into your project so you can use it to make fire effects.
  2. Create the Torch Blueprint:
    • ext, open the main Blueprint File, and create a new blueprint called BP_Torch.

Inside this blueprint, add a Static Mesh Component from the Components tab; name the new component Torch. Now assign the torch’s static mesh along with its material instance (MI) to this component.

  1. Add Fire Effects:

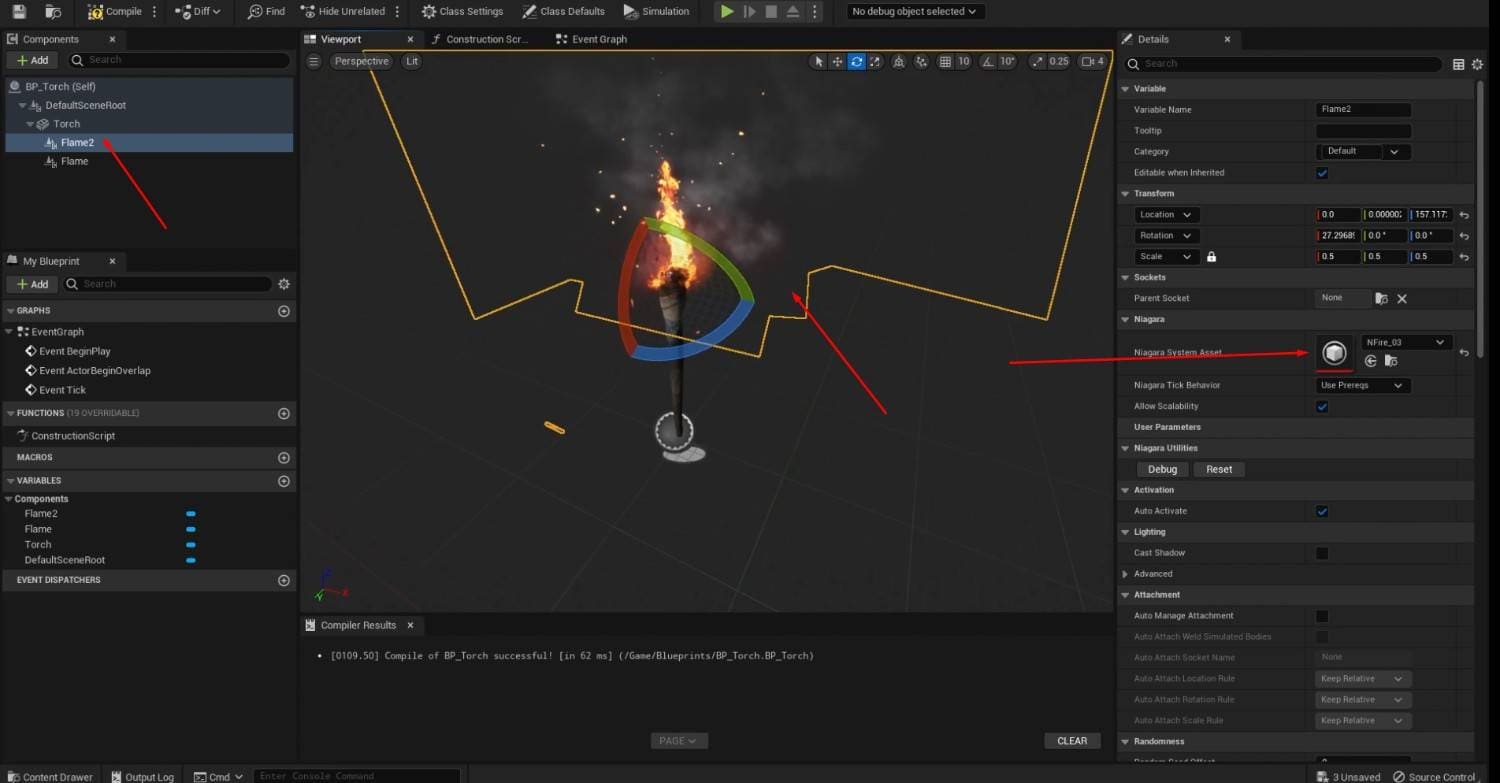

    • Now it’s time to add some fire! From within your blueprint, add a Niagara Component and name it Flame
    • In the Niagara tab situated on the right-hand side there will be an area where you can select which VFX asset from your fire pack you’d like to use; make sure that you pick one and then assign this selection specifically to the Flame component.
    • Position these flames at the top part of your torch — don’t forget to place them there manually by adjusting both their scale as well rotation so each flame fits nicely within those dimensions created earlier when designing what would eventually become our beautiful new set piece.
  2. Add Smoke Effects:
    • Would you like to smoke with that? If an answer is “yes,” then optionally include another Niagara Component for additional effects like billowing clouds above those already present fiery ones.
  3. Finalize and Place:
    • Save everything plus compile all work done up until now
    • Oh yeah plus also drag-and-drop one copy from the Content Browser window into the actual level viewport wherever would suit best according to these guidelines provided here step-by-step tutorial instructions text.

By following these steps, you’ll create dynamic torches that enhance the visual realism of your digital environment design in Unreal Engine.

Campfire

To create a realistic campfire in Unreal Engine, follow these steps to set up and customize your blueprint:

  1. Create the Campfire Blueprint:
    • Inside the main Blueprint Folder, create a new blueprint and name it BP_Campfire.
  2. Add Static Mesh Components:
    • Open the BP_Campfire blueprint and add a Static Mesh Component for the campfire logs. In the Static Mesh tab on the right side, choose a log asset and assign it to this component.
    • If your campfire includes multiple logs or additional elements, add more Static Mesh Components for each asset. Assign the corresponding assets and their materials (MI) in the Static Mesh tab.
  3. Build the Campfire Structure:
    • Arrange the log assets within the blueprint to form the campfire structure. Create and assign material instances (MI) to the logs to enhance their appearance.
  4. Add Fire and Smoke Effects:
    • Add a Niagara Component to the blueprint. In the Niagara tab on the right, add fire and smoke VFX to simulate a realistic campfire flame and smoke.
  5. Finalize and Place:
    • Save and compile the blueprint.
    • Drag the BP_Campfire blueprint into your scene, positioning it where the campfire blockout is located.

By following these steps, you’ll create an immersive campfire effect that enhances the digital environment design in Unreal Engine.

Tents

To create and customize a tent in Unreal Engine, follow these steps to build a functional and visually appealing blueprint:

  1. Create the Tent Blueprint:
    • In the main Blueprint Folder, create a new blueprint and name it BP_Tent.
  2. Add Tent Assets and Layout:
    • Open the BP_Tent blueprint and start adding the necessary static mesh components to construct the tent. Arrange the assets to form the tent’s layout.
  3. Enhance the Interior:
    • To make the tent more dynamic, add additional assets inside, such as crates or other props. This will add realism and life to the interior.
  4. Add Lighting:
    • If the tent includes a lantern or similar light source, add a Point Light component inside the tent. Adjust the light settings to match the lantern’s effect and illuminate the tent appropriately.
  5. Finalize and Place:
    • Save and compile the blueprint.
    • Drag the BP_Tent blueprint into your scene, positioning it where the tent block out is located.

Spline Tool

Using a spline blueprint can significantly streamline your project workflow. Here’s how to create and utilize a spline tool effectively in Unreal Engine:

  1. Create a Spline Blueprint:
    • Start by creating a new blueprint specifically for the spline tool. This will help automate and enhance your asset placement.
  2. Design Chain Assets:
    • In Maya, design a chain using a torus shape with minimal subdivisions. Create two chains to use with the spline tool.
  3. Export and Import:
    • Export the chain as an FBX file and place it in your Static Mesh folder. Import this chain into Unreal Engine.
  4. Configure the Spline Tool:

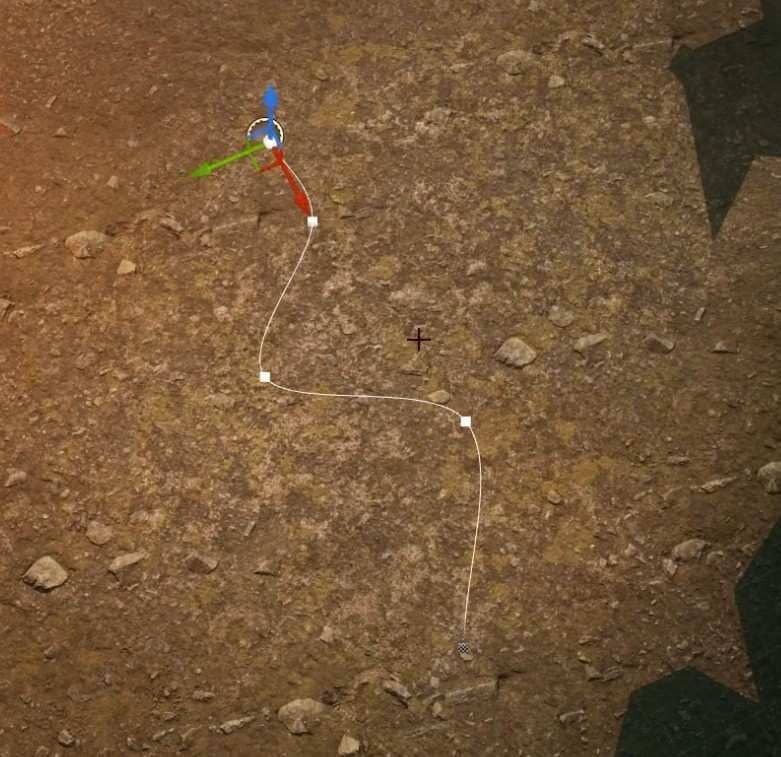

    • Open your spline blueprint and add the chain mesh to the spline tool in the Details panel. This will enable you to create curves and duplicate the chain along the spline.
  5. Extend Functionality:
    • You can also incorporate other assets like ropes, planks, or fences. Add these to your spline tool to replicate and position them along the spline, enhancing the versatility of your design.

For a detailed tutorial on creating a simple spline blueprint, check out the resources available on our website. This tool will make managing and placing assets in your project much more efficient.

Foliage

To enhance the natural look of your scene, and apply proper digital environment design follow these steps to effectively use foliage in Unreal Engine:

  1. Scatter Trees:
    • Import the trees you created in Tree It into Unreal Engine. Use the Foliage Mode tools to scatter these trees around the edges of the scene. This will help fill up the foreground and create a lush, realistic environment.
  2. Add Rocks:
    • In Foliage Mode, select rocks from the foliage section and scatter them throughout the scene. This adds variety and realism to the terrain.
  3. Manual Placement:
    • For a more organic feel, manually place individual trees and rocks in key areas of the scene. This will help break up repetitive patterns and make the environment appear more natural.
  4. Incorporate Grass and Weeds:
    • Download grass and weed assets from Quixel to fill in any empty spaces on the ground. Use the same brushes you used for trees and rocks to distribute these elements evenly.

End Result: By following these steps, you will achieve a rich and immersive environment that feels natural and well-integrated.
